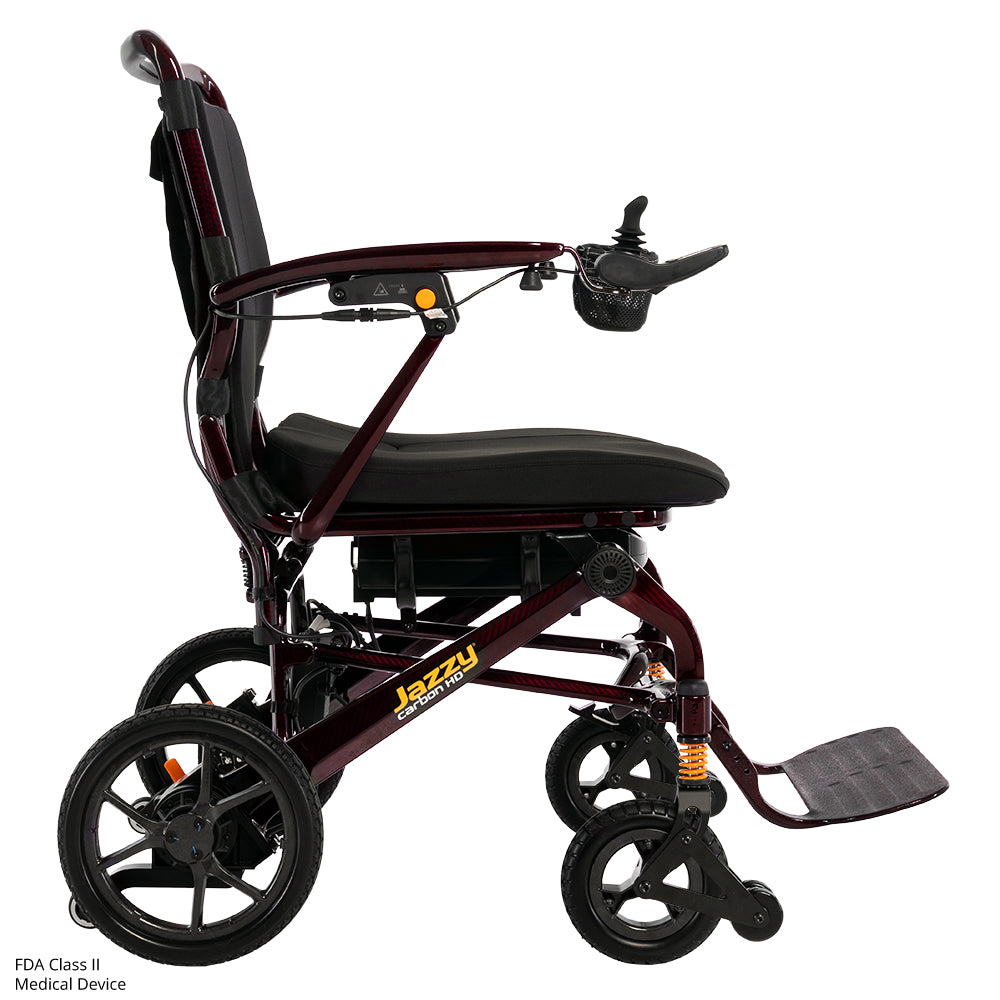

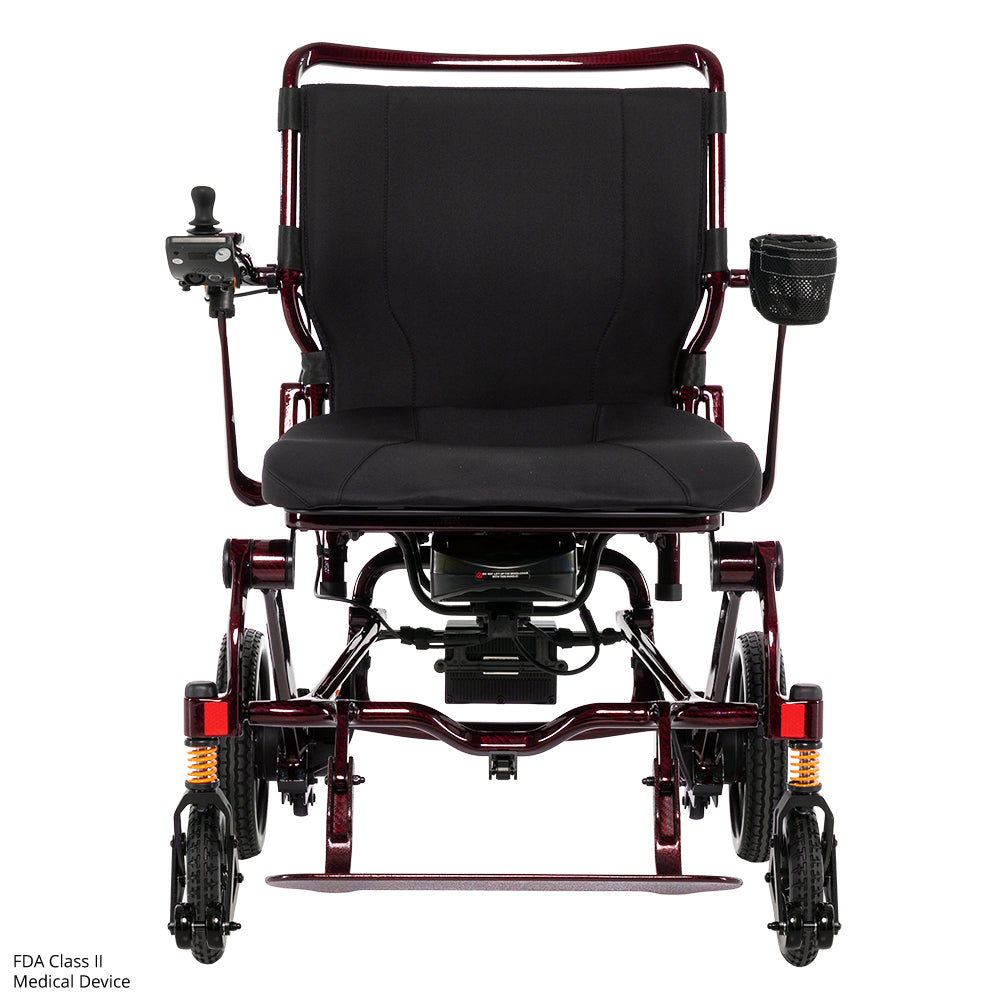

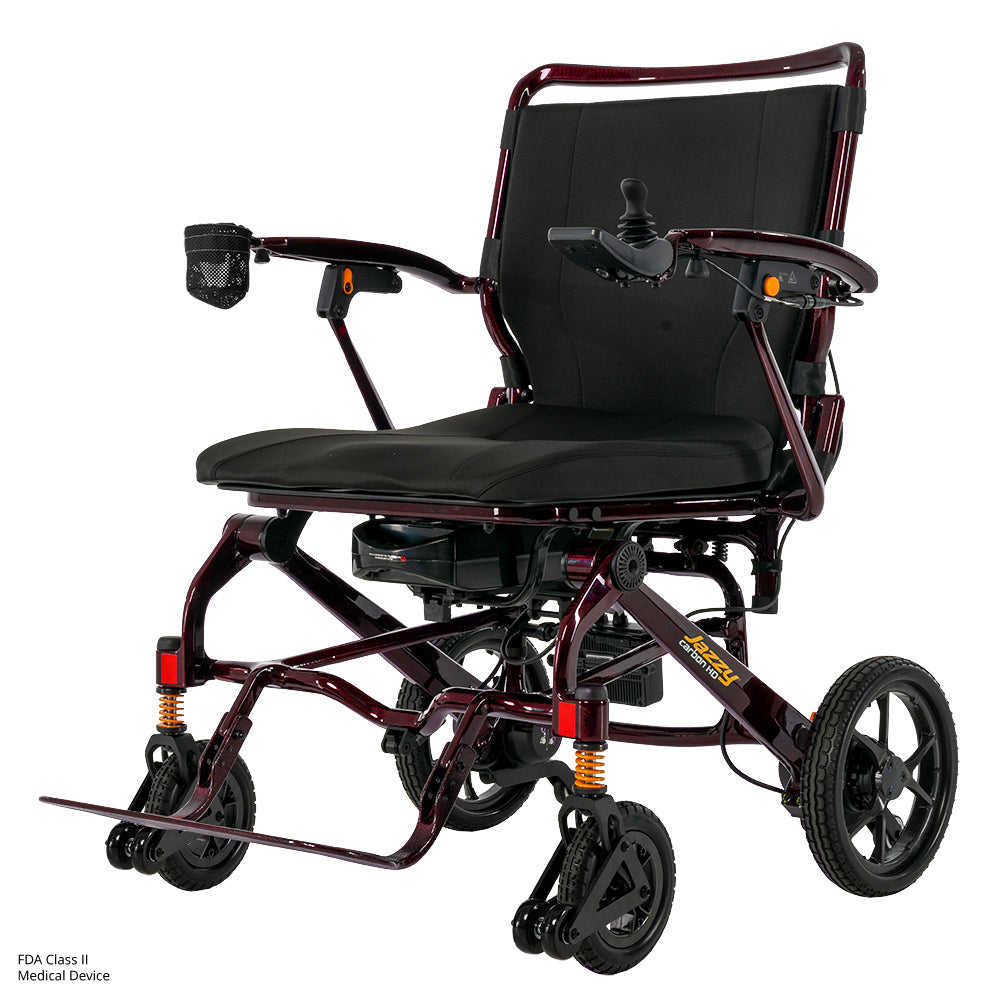

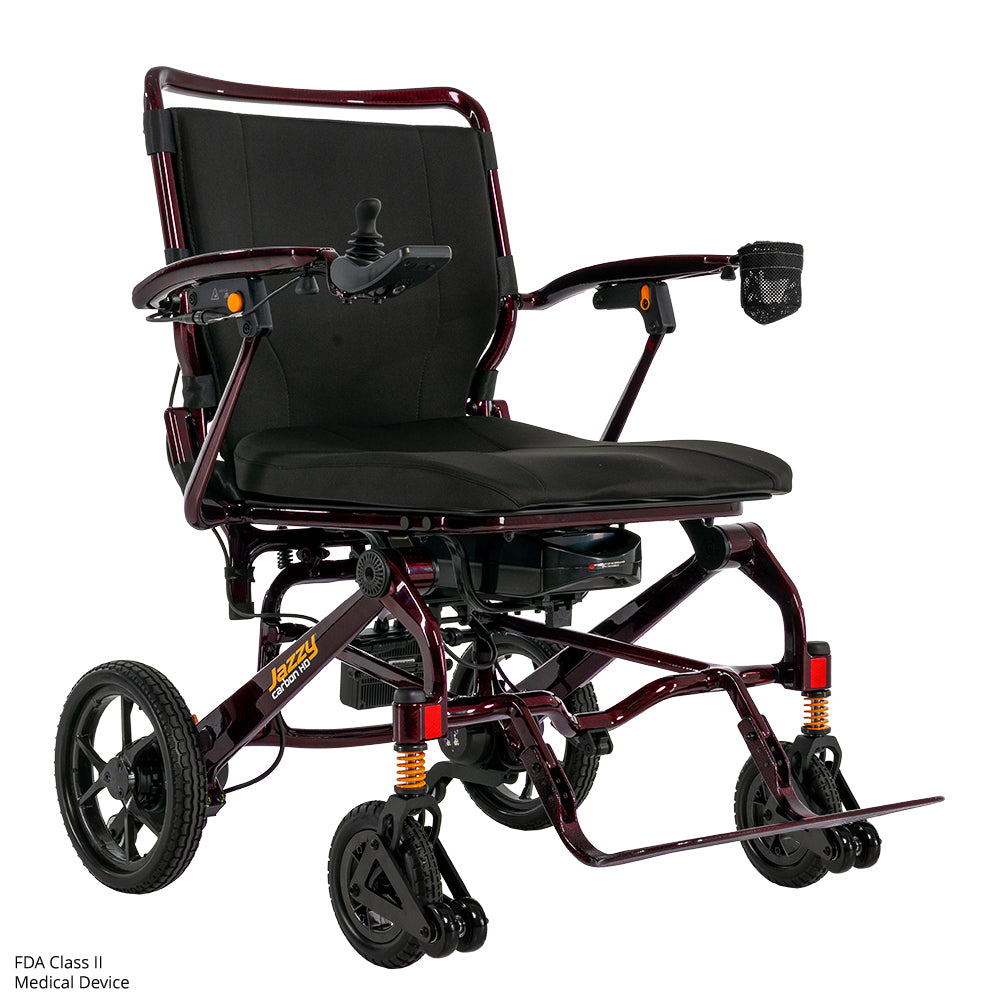

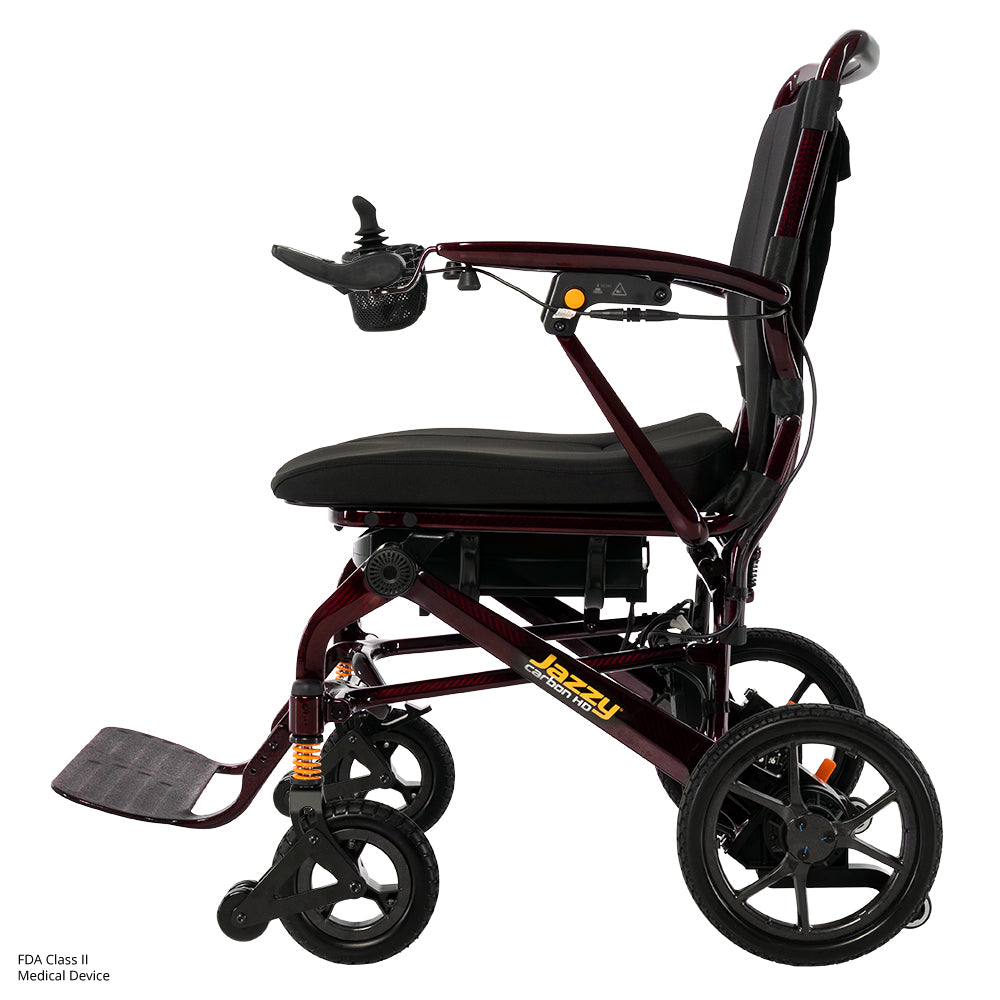

Jazzy® Carbon HD Black Cherry Power Wheelchair

Jazzy Carbon HD, Black Cherry, 20” x 20” Black Foam Seat, 20 Ah Lithium-ion Battery

The Jazzy® Carbon HD weighs 32.2 lbs. without the battery and boasts a 400-lb. weight capacity without compromising on the quality or performance. It quickly folds and is easy to pick up thanks to a durable, lightweight carbon fiber frame.

• 400 lb weight capacity

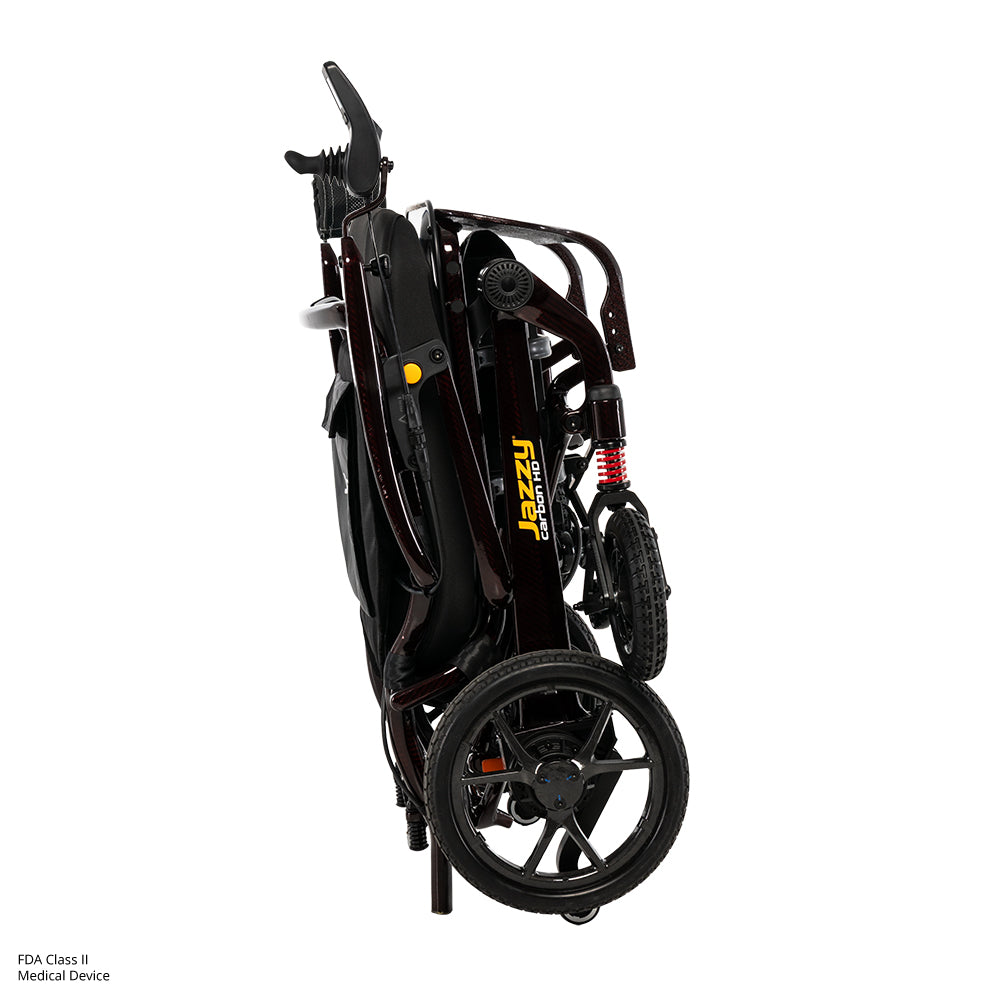

• Quick Folding System: Collapses in seconds and locks firmly for easy storage, lifting, and transport. Just as simple to unfold, making it perfect for everyday use and travel.
• 20 AH lithium battery that delivers up to 12.4 miles per charge.
• Strong Yet Lightweight Frame: Built with durable carbon fiber, the Jazzy® Carbon HD weighs only 32.2 lbs. without the battery, supports up to 400 lbs., and combines portability with strength for rider confidence and independence.

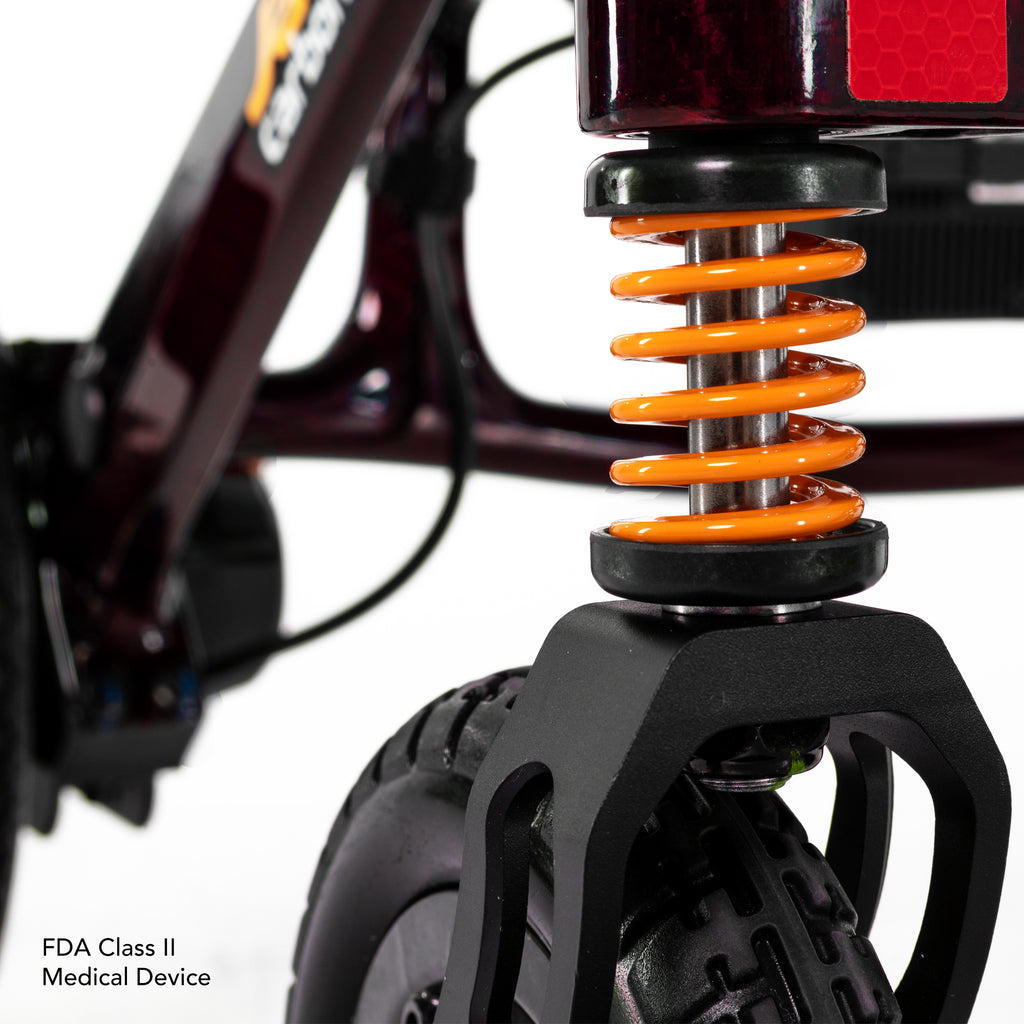

• Reliable Ride Quality: Front and rear suspension ensure smooth comfort across different terrains, with speeds reaching 3.7 mph.

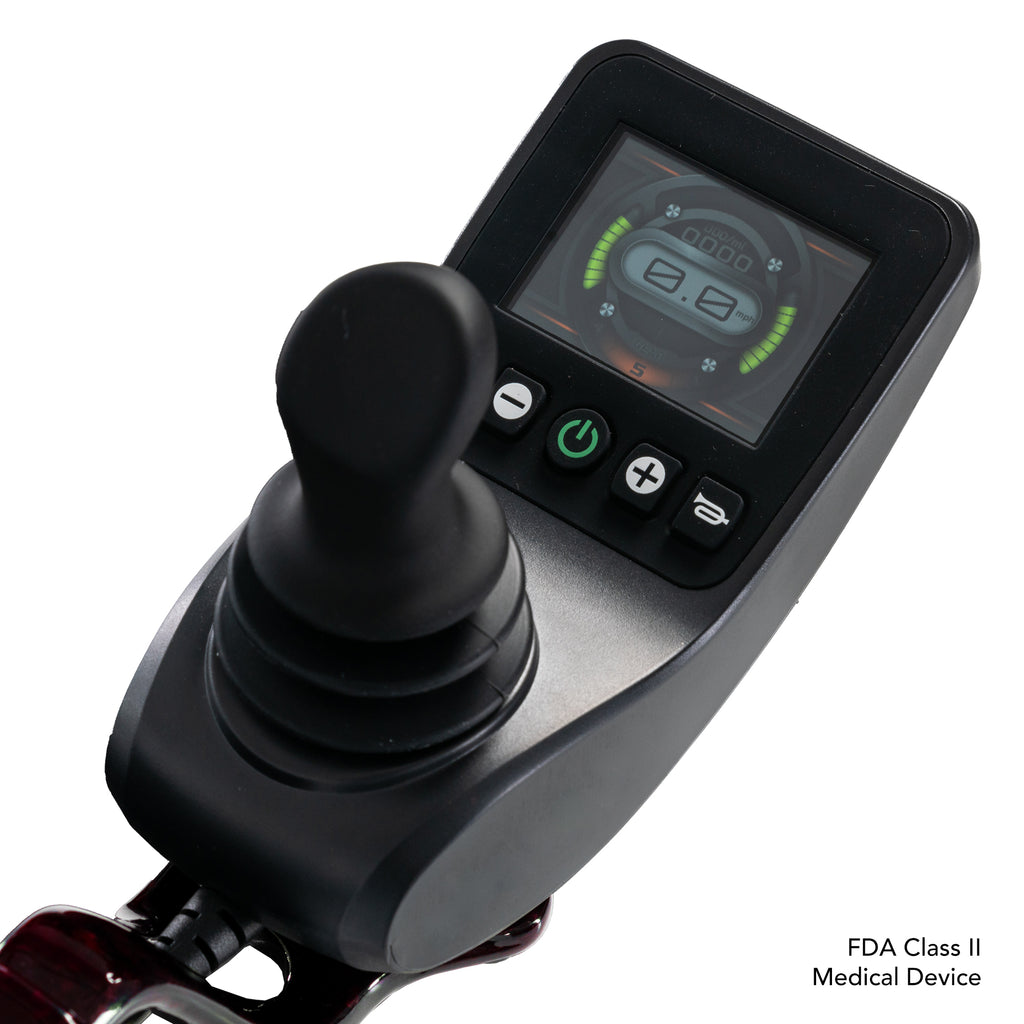

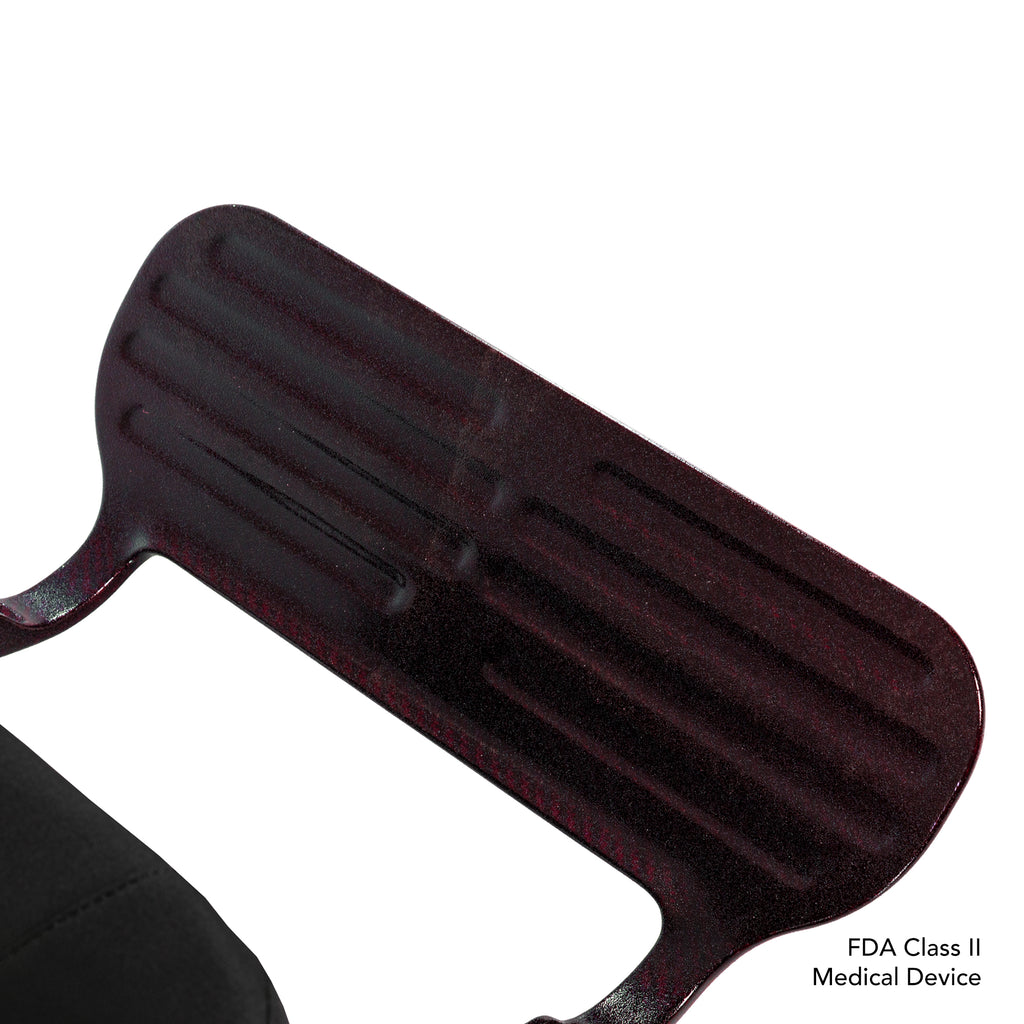

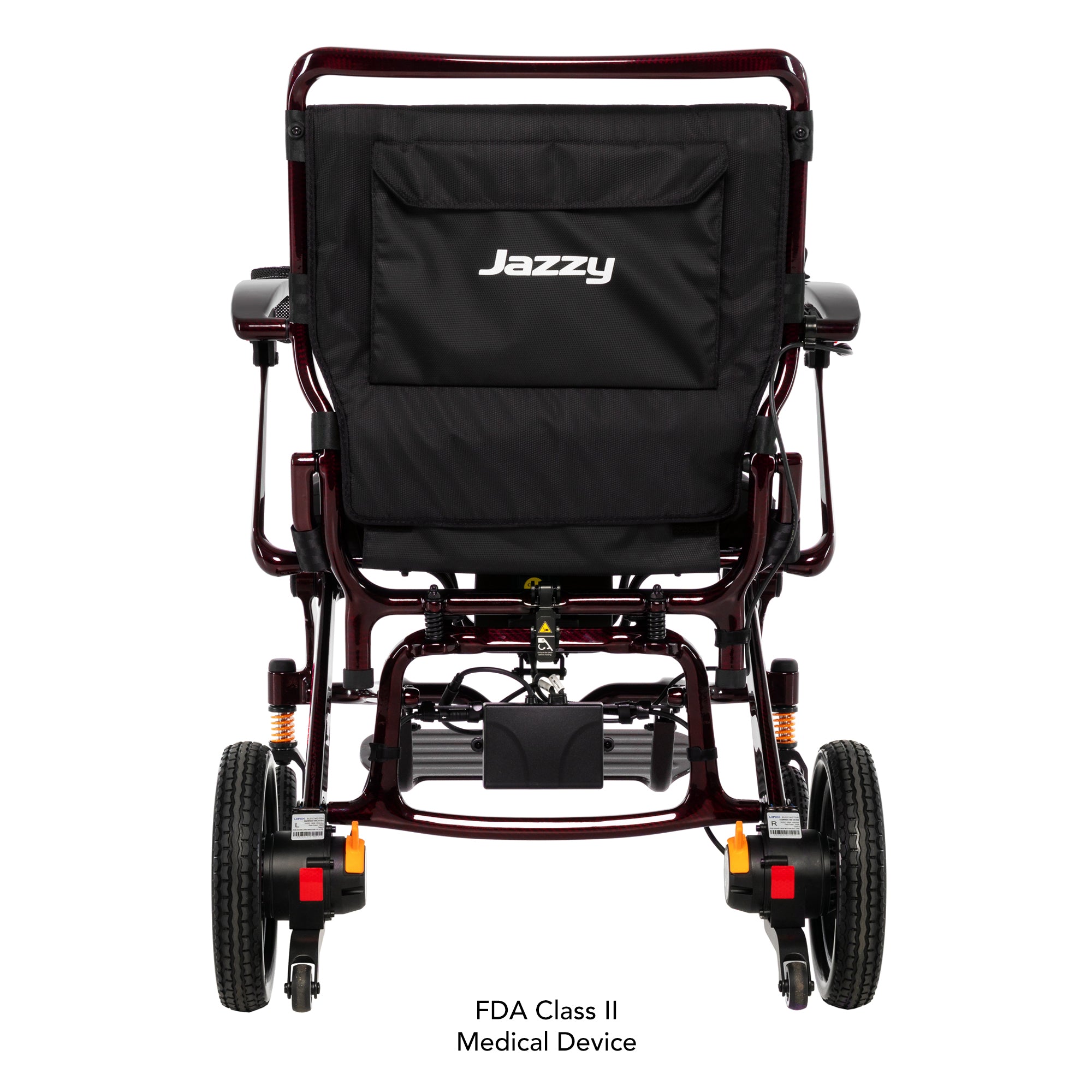

• Comfort & Convenience Features: Includes a roomy 20" x 20" seat, adjustable padded backrest with removable cushion, wide adjustable foot platform, seat-back storage pocket, mesh cup holder, lap belt, and standard cushion. The LCD controller mounts on either armrest, offering a digital display, USB-C port, and puddle light

  Model	Jazzy Carbon HD
  Weight Capacity	400 lbs.
  Maximum Speed*	Up to 3.7 mph
  Ground Clearance	1” at motor
  Turning Radius**	36.4”
  Overall Length**	36.81”
  Overall Width	26.4”
  Front Casters	6.5” solid
  Drive Wheels	10.6” solid
  Range Per Charge*	Up to 12.4 miles
  Total Weight Without Batteries	32.2 lbs.
  Standard Seat	20” x 20"
  Motor Output	24v/250W
  Braking System	Regenerative and electromechanical
  Battery Requirements	20 AH
  Battery Charger	2 amp
  Warranty	Frame: 5 years Electrical Control/Lever System, Motor/Drive System, Bearing Sleeve, and Battery: 1-year




  Meeting and Exceeding High Standards for your Peace of Mind.

  Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

  Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

  The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

  The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

  All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

  Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)
